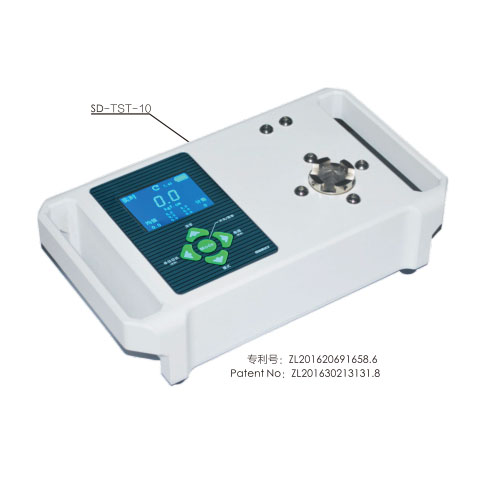

Digital torque meter

Description

Feature:

• Adopt 2.5 inch LCD display, a variety of data on the same interface, read more intuitive, remove the operation of switching
  interface when filtering data.
• Automatically confirm the max, min and average values, torque measuring precision reach up to 0. 5%
• Connect to the computer through the USB port, can draw Curve graph of torque output and speed, Using computer can store unlimited
  set of test data.
• Brand New appearance design concept, integrating industrialization and humanize, more convenient to operate and use.

Technical parameters:

Application:

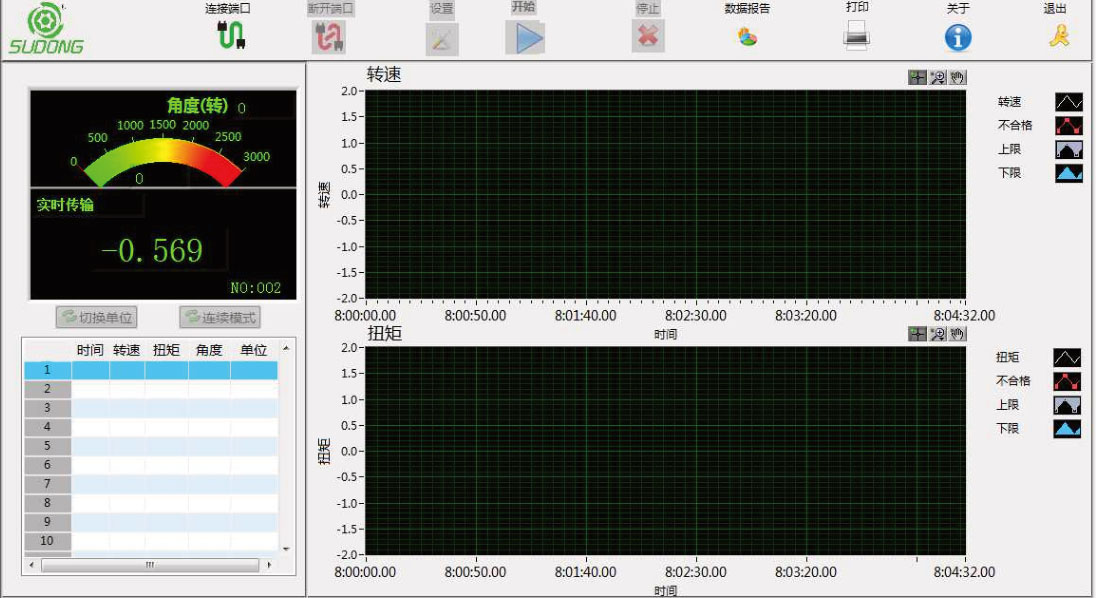

1. 1. Perfect support installation and use of Windows XP or above system.
   2. Data analysis software is installed on the computer, with no need to down load drive or set,can connect with torque meter to communicate through USB port.
   3. Display speed, torque and angle data in Real time.
   4. Test results analysis, data statistical analysis, can quickly export Excel form,and also can be one-key print.
   5. Can record test data single time or continuous multiple times,through the upper and lower limits of value to set ,the system will automatically determine the qualified and unqualified.

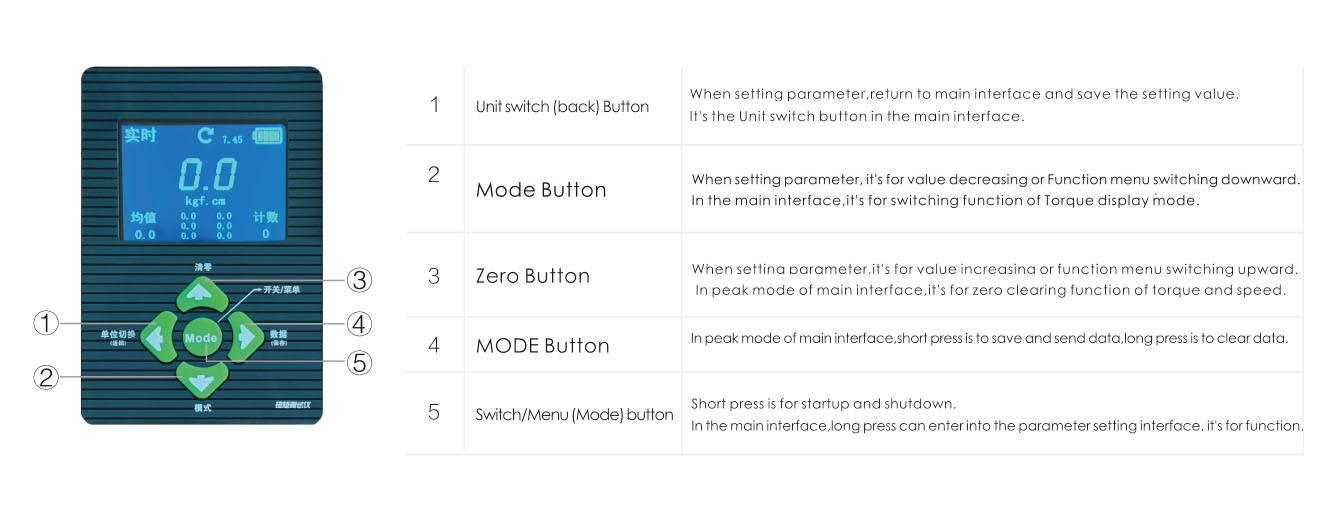

Buttons function:

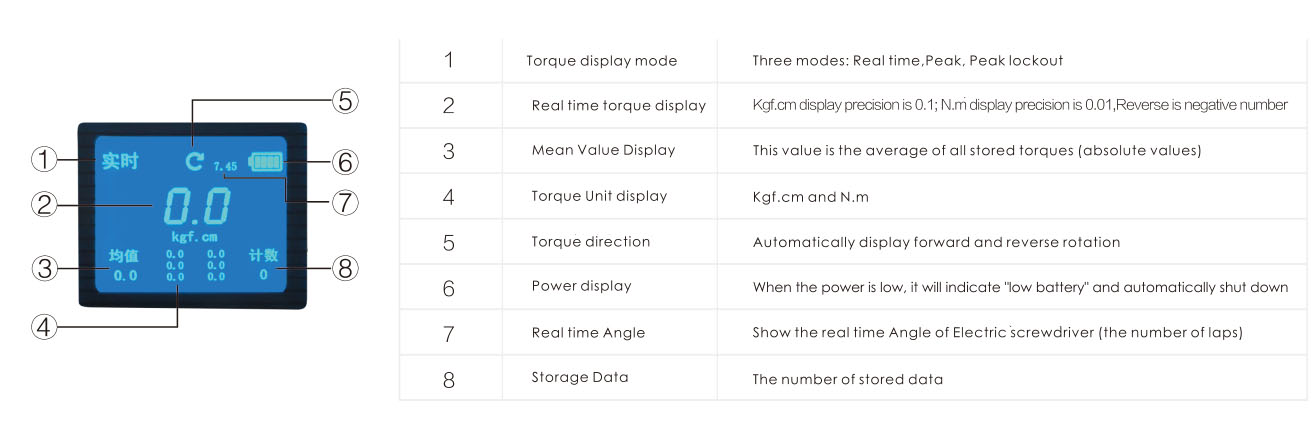

Menu changeover:

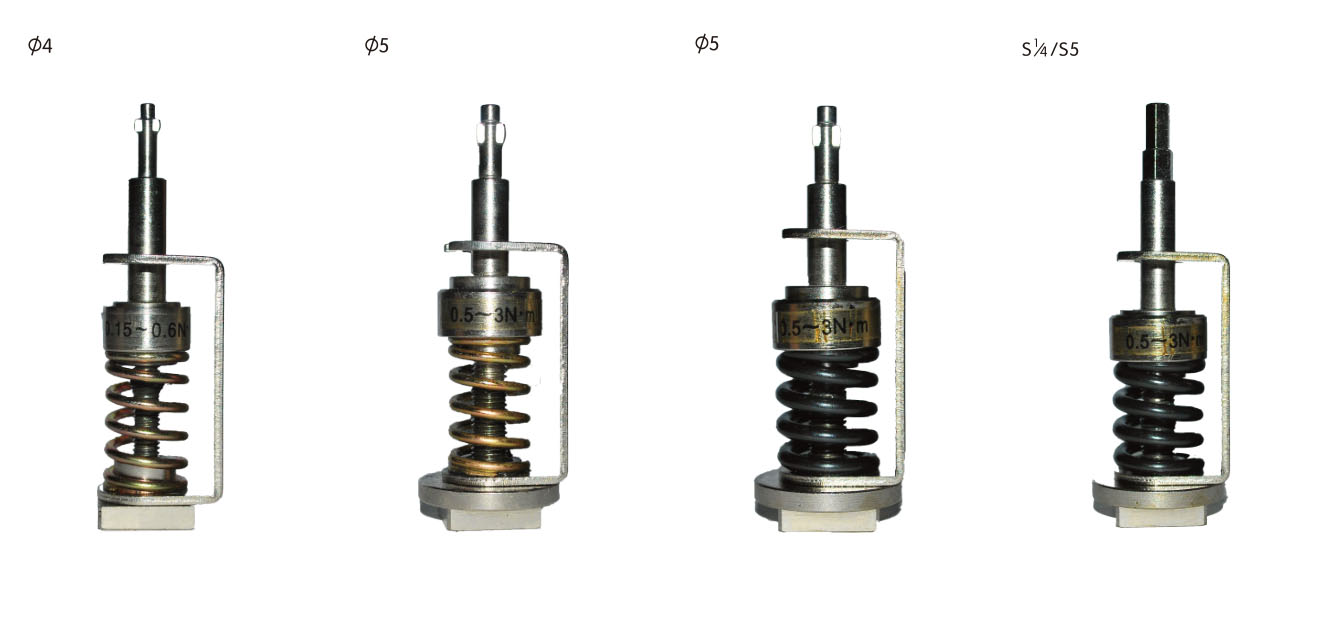

Accessories:
